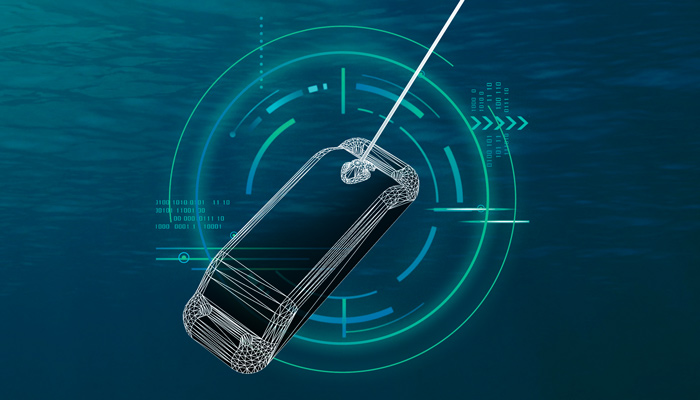

Linkit Under Water Transmitter
The Linkit UW’s small size, robustness & long battery life make it the ideal back up solution for your equipment by ensuring you stay always connected.
Its ability to reach depths of -1,500m also make it suitable for monitoring underwater ocean platforms.
Discover its Main Features
Rechargeable via induction and easily attached with cable ties
Can resist
depths of -1,500m
Suited for recovering lost platforms & monitoring underwater platforms
Equipped with wet/dry sensor meaning it transmits only when at the surface
Main Features
Argos
- TX Output Power: 250mW to 1W
- RX for Satellite Pass Predicition
Antenna
- Argos: whip memory wire (21cm)
- GNSS: Internal ceramic patch
Box Features
- Measures: 12 x 4.2 x 2.2cm
- Weighs: 140g
- Withstands Temperatures: from -20°C to 50°C
- Water Resistance: IPX8
- Depth Resistance: -1,500m
Consumption
- Argos TX (<1sec burst): 220mA
- GNSS RX ZOE-M8: 27mA
- Sleep mode: 0.049mA
Configuration
Configurable via bluetooth with GenTracker app (iOS/Android)
GNSS
- Uses GPS/GALILEO/QZSS/GLONASS
- Position acquisition can be programmed for every:
- 10, 15 or 30 minutes
- 1, 2, 6, 12 or 24 hours
- Argos Doppler positioning also available
Battery
Rechargeable Lithium-Polymer Battery (2,200mAh)
